As modern grain storage develops towards large-scale, standardized, and intelligent operations, the limitations of traditional masonry grain silos and ordinary prefabricated steel silos in terms of sealing, structural stability, and construction efficiency are gradually becoming apparent. Spiral folded steel silos, a type of steel silo structure with continuous spiral interlocking molding as its core technology, are becoming the mainstream choice for large grain depots, grain processing enterprises, and port grain transshipment systems due to their superior integrity, airtightness, and service life.

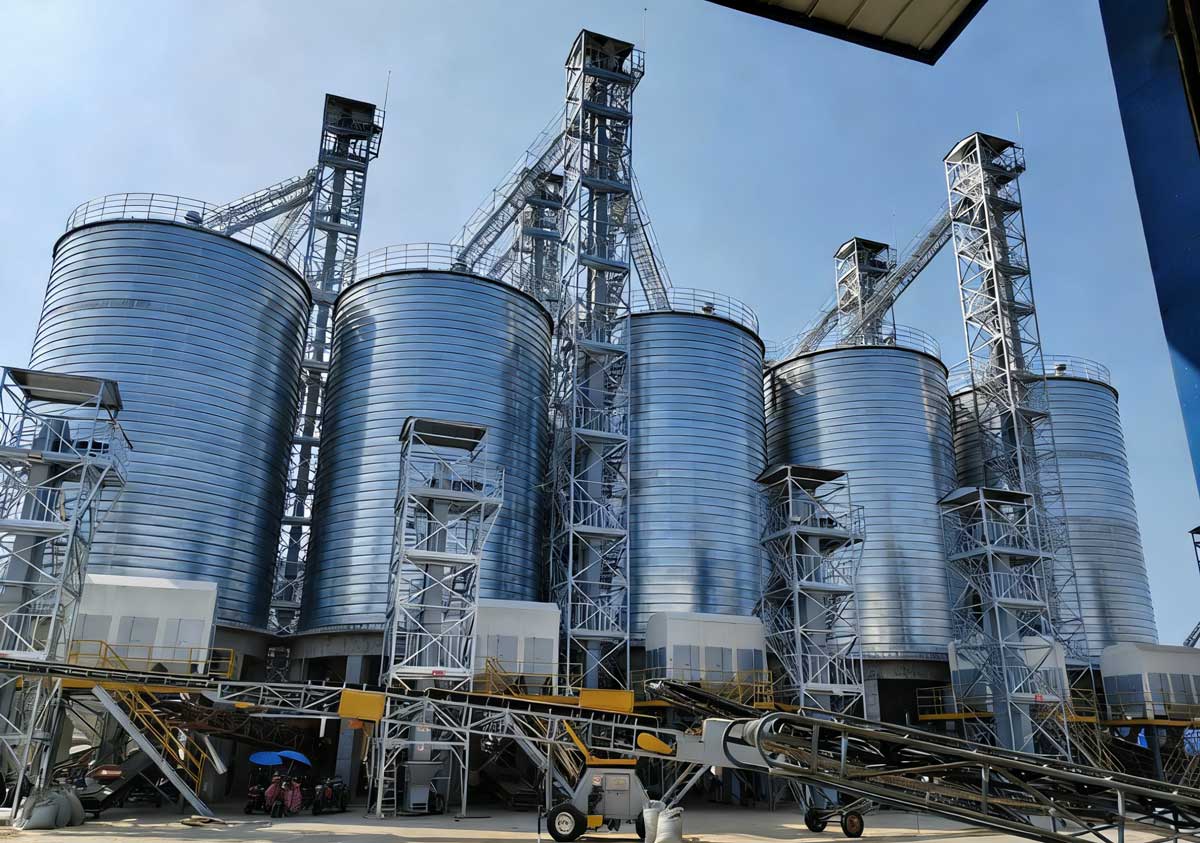

Basic Concepts and Structural Forms of Spiral Folded Steel Silo
Spiral folded steel silo, also known as spiral folded steel silos, are a type of grain silo structure that uses specialized forming equipment to continuously roll and spirally roll galvanized steel sheets or high-strength steel strips on-site, forming the silo walls through mechanical interlocking.
Unlike traditional segmented prefabricated steel silos, spiral folded steel silo do not have numerous bolted connection points. Instead, they are integrally formed through a continuous spiral rolling structure. This structure creates a continuous force-bearing system in both the circumferential and vertical directions, significantly improving the overall rigidity and stability of the silo.
A typical Spiral folded steel silo, mainly consists of the following parts:
Spiral folded steel silo, wall system

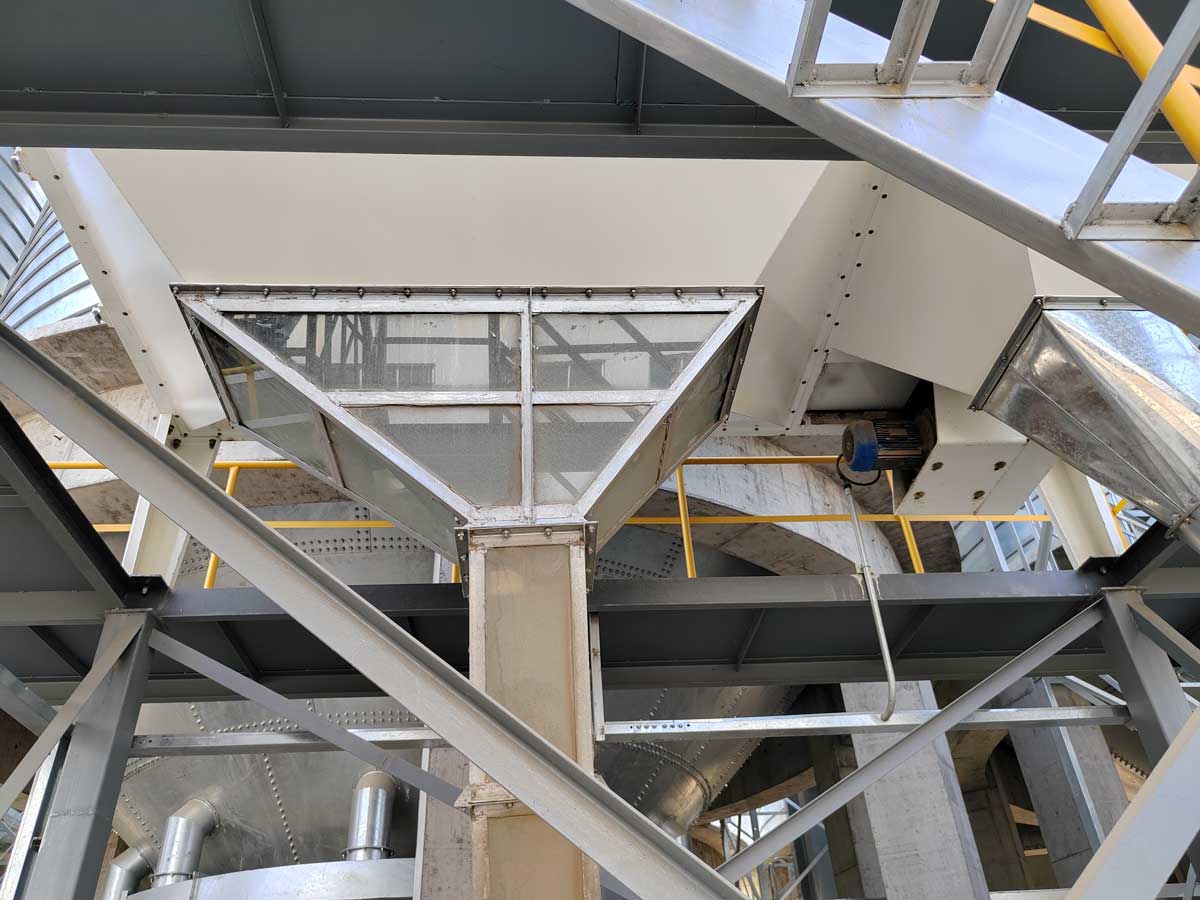

Conical or flat-bottomed silo structure

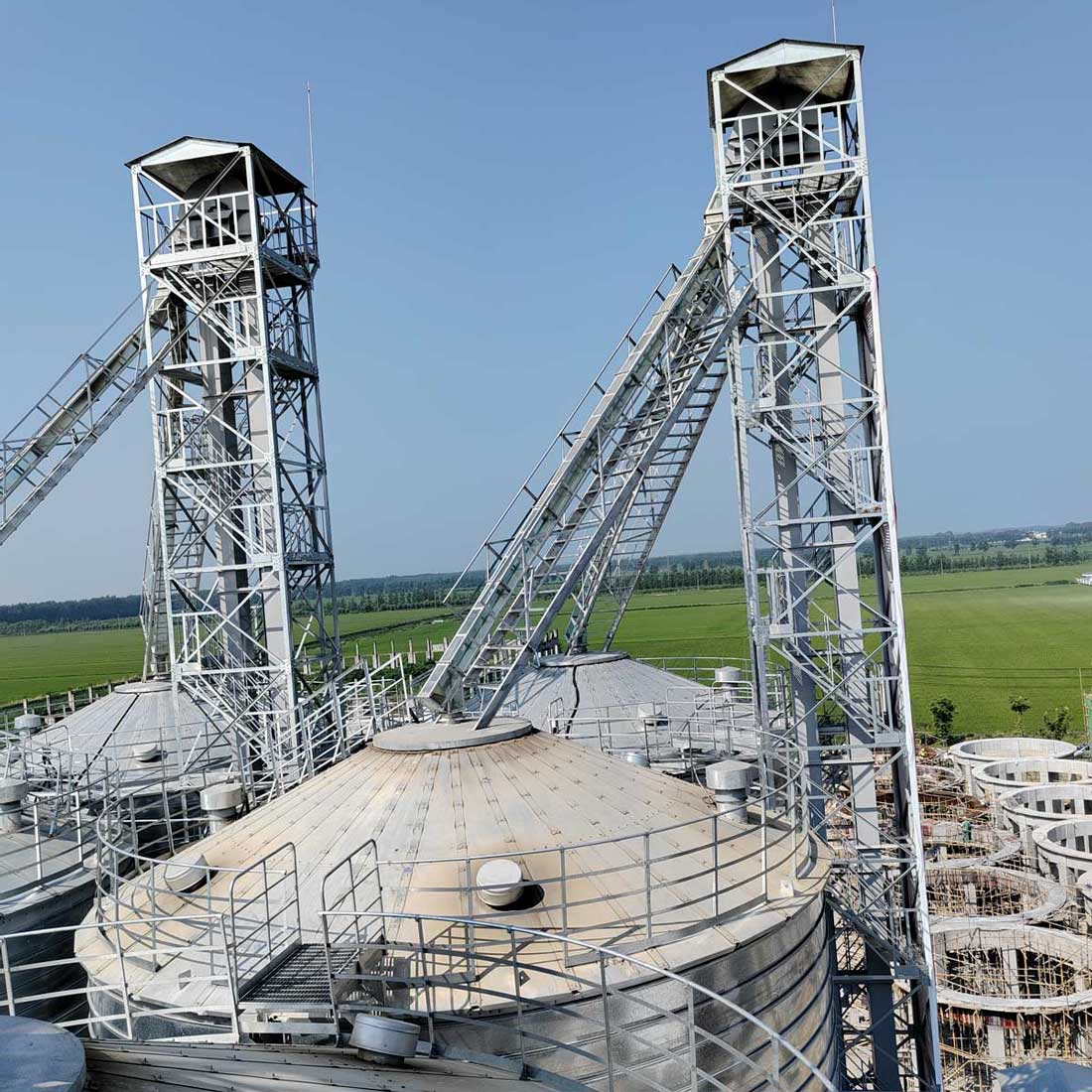

Under-side ventilation and top-side ventilation systems
Infeed/outfeed, grain condition monitoring, and material level detection systems
Core Manufacturing Process of Spiral Folded Fteel Silos
The core technology of spiral folded steel silos lies in the spiral interlocking forming process. This process uses a specialized spiral folded forming machine to continuously feed steel plates into the equipment at the construction site, completing the following key steps during the rolling process:
Cold Bending Forming of Steel Plates: The steel plates are gradually cold-bent into an arc shape at room temperature, avoiding the material performance degradation caused by hot working.
Multi-Layer Interlocking Edge-Curling Structure: The silo wall joints adopt a multi-layer mechanical interlocking structure, forming a continuous connection method similar to a "lock-in," without relying on welding or bolts.
Internal Steel Column Reinforcement: During the silo rolling process, internal steel columns are welded to support the silo wall panels, enhancing structural strength and providing an installation benchmark.
Spiral Rising Forming: The silo wall rises spirally, distributing vertical loads and circumferential stresses evenly.
This process not only improves the airtightness and watertightness of the silo but also significantly reduces the impact of human installation errors on structural performance.
Structural Mechanics Advantages of Spiral Folded Steel Silo
From a structural mechanics perspective, spiral folded steel silos offer significant advantages:
Strong Overall Stress Continuity: The spiral folded structure avoids stress concentration issues caused by concentrated bolt holes in traditional steel silos, resulting in more uniform stress distribution on the silo walls.
Excellent Wind and Seismic Resistance: The continuous spiral structure acts as an "invisible reinforcing rib" on the outer wall of the silo, exhibiting a higher structural safety factor under strong winds and earthquakes.
Strong Deformation Control: For tall, large-diameter grain steel silos, the spiral folded structure effectively controls the risk of wall bulging and localized buckling.
Higher Silo Straight Sections: The height of corrugated steel silos is limited by the thickness of the wall panels, the thickness of the columns, and the size of the bolt holes, which are restricted by processing machinery. spiral folded steel silos, with their welded steel columns, offer a wider range of column options, allowing for larger silo capacities compared to corrugated steel silos.
Sealing Performance and Grain Quality Assurance
Grain storage demands extremely high levels of airtightness and moisture resistance. Spiral-sealed grain silos offer significant advantages in the following aspects:
The silo wall joints are continuously interlocked, with no through bolt holes, naturally providing excellent airtightness; high-level waterproofing and moisture resistance can be achieved by combining sealants or coatings; it facilitates the application of modern grain preservation technologies such as nitrogen storage and low-oxygen storage; its excellent sealing performance effectively inhibits mold, pests, and abnormal grain temperature fluctuations, ensuring grain quality and safety from the source.
Advantages in Construction Efficiency and Site Adaptability
spiral folded steel silos typically employ a site-formed, synchronously raised construction method, offering the following advantages over traditional steel silos:
Fast Construction Speed: Less initial processing and a shorter overall construction period;
Superior Sealing Performance: Spiral folded steel silos utilize a 5-layer interlocking edge process, forming continuous spiral reinforcing ribs, resulting in excellent airtightness and watertightness. This makes them particularly suitable for storing easily dusty powdery materials such as cement, fly ash, and mineral powder. In contrast, the sealing performance of prefabricated corrugated silos relies on the sealing strips at bolted connections, which may require maintenance due to loosening or aging after long-term use.
Stronger Overall Structure and Load-Bearing Capacity: The silo body of a spiral folded steel silo is continuously rolled from a single sheet of steel, forming an integrated spiral convex structure, significantly improving the silo's compressive strength, seismic resistance, and overall stability. In comparison, Bolted silos are assembled from multiple corrugated plates using bolts, resulting in more joints and slightly inferior overall integrity compared to spiral folded steel silos.
Longer service life: The interlocking process of spiral folded steel silos reduces welds and joints, resulting in better corrosion resistance and a normal service life of 30-40 years.<sup>3</sup> In contrast, the bolted connections of Bolted silos are susceptible to environmental corrosion. Although the lifespan of Bolted silos can be extended by replacing parts, their overall durability is generally lower than that of spiral folded steel silos.
Especially in the construction of large-diameter, large-capacity grain silos, spiral folded steel silos can significantly shorten the construction period and reduce overall construction costs.

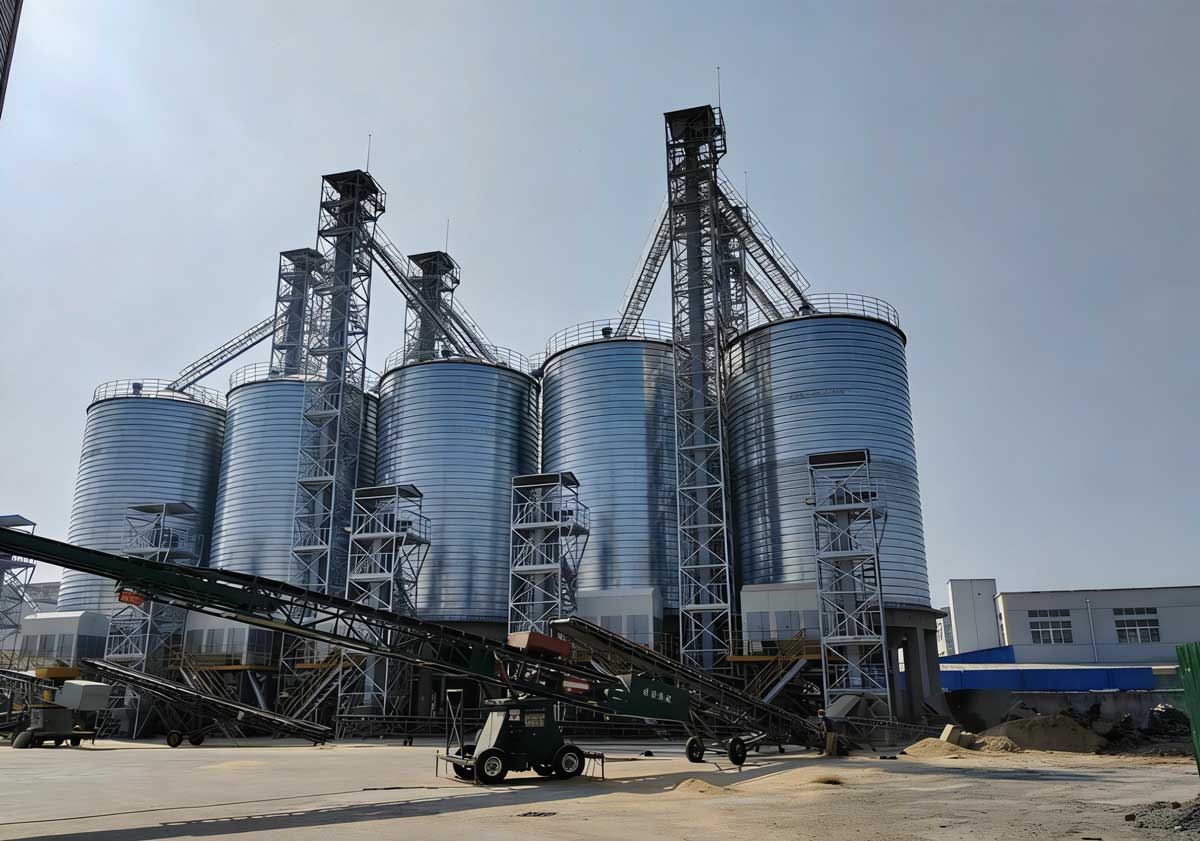

Typical Application Scenarios of Spiral Folded Steel Silos
Due to their structural reliability and long-term operational stability, spiral folded steel silos are widely used in the following fields:
National and local grain reserves
Grain processing and deep processing enterprises
Port grain transshipment and logistics systems
Storage of feed, oils, and related bulk materials
In projects with high requirements for safety, sealing, and service life, spiral folded steel silos have become the preferred solution.
Overall, spiral folded steel silos, through advanced spiral forming technology and continuous stress structure design, are superior to traditional steel grain silos in terms of structural safety, sealing performance, construction efficiency, and long-term operational stability. As grain storage and transportation systems continue to upgrade, spiral-rolled edge steel silos will play an increasingly important role in modern grain storage engineering, becoming a crucial component of high-standard grain storage systems.
