SCRAPER CONVEYOR

Product Information :
TGSS series chain conveyors, for straight or inclined transportation of grain in desired capacity in undamaged and economic way.
Share With:

Product Information

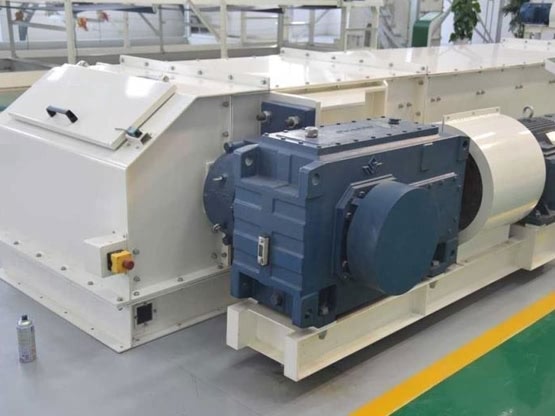

Scraper Chain Conveyor

TGSS Series Chain conveyors, ensure straight or inclined transport of the cereal in desired volume in undamaged and economic way. The chain, chain pins and rollers have been tempered through thermal treatment. The construction is galvanized steel, painted steel and stainless steel upon request. Our manufactured goods are completely bolted, mounting and maintenance is easy.

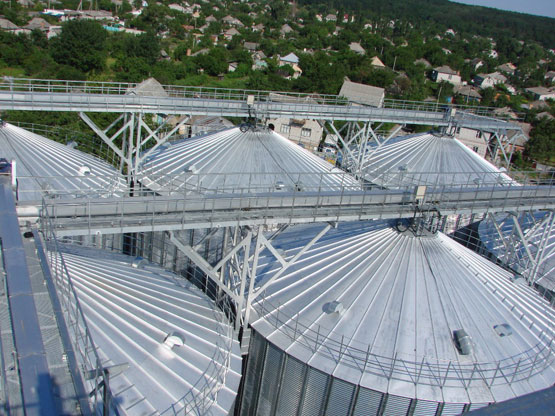

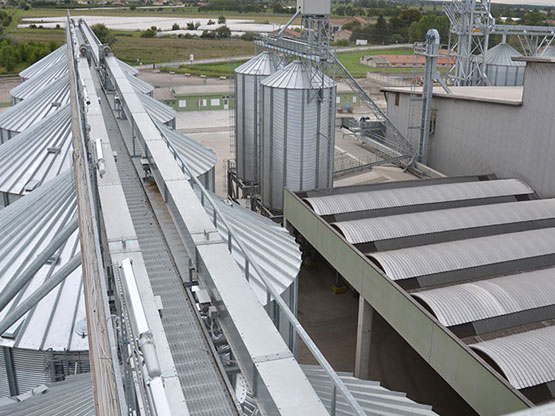

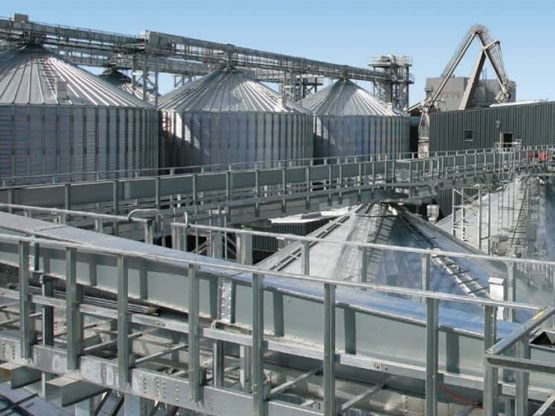

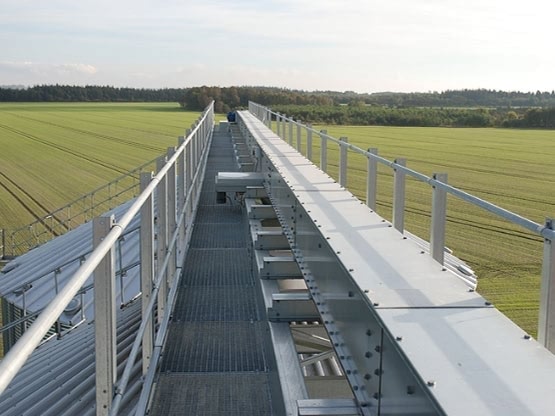

  • Widely used in long-distance transmission of a variety of granular, flaky, or powdery materials in grain terminal, silo, grain and oil processing enterprises, installation angle ≤15 °.
  • Conveying chain use high strength welding plate chain(also optional for forging).
  • When temperature of conveyed material<80℃, scraper material use UHMWPE; when temperature of conveyed material>80℃, scraper material use nylon, which can be used for a long time under 150 ℃.
  • Flexible process layout, applicable to muti-feeding, muti-discharging points, equip with quick-open access door and observation window.
  • Optional for speed monitoring and anti-blocking/anti-chain breaking alarm device, safe and reliable.
  • The guide rail is made from wear-resistant material which is special treated or is laid with high polymer wear-resisting plate.

Technical Specifications

Model Conveying
Capacity (m3/h)
Chain
Speed (m/s)
Chain
Pitch (mm)
Chain
Width (mm)
Scraper
Height(mm)
Gear
Teath (pcs)
Shell
Width (mm)
TGSS20 50-75 0.35-0.55 78.1 170 50 12 200
TGSS25 60-100 0.35-0.55 78.1 220 50 12 250
TGSS32 135-200 0.40-0.65 78.1/101.6 285 60 17/13 315
TGSS40 170-275 0.40-0.65 78.1/101.6 370 60 17/13 400
TGSS50 330-550 0.45-0.80 101.6/153.67 470 80 16/11 500
TGSS63 420-750 0.45-0.80 153.67 600 80 11 630
TGSS80 500-880 0.45-0.80 153.67 770 90 11 800
TGSS100 700-1250 0.45-0.80 153.67 970 90 12 1000
TGSS120 850-1500 0.45-0.80 153.67 2x560 90 12 1200
TGSS160 1250-2200 0.45-0.80 153.67 2x760 90 13 1600
TGSS200 1600-2800 0.45-0.80 153.67 2x960 90 13 2000
