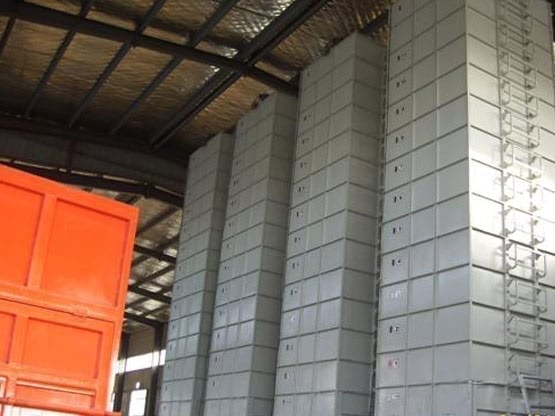

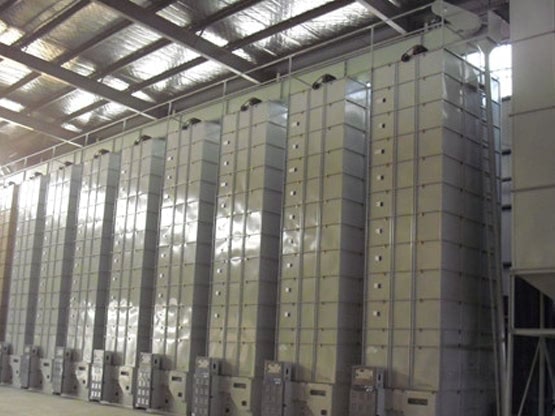

BATCH TYPE GRAIN DRYER

Product Information :
Batch type grain dryer is widely used for small capacity paddy, seeds and oil crops drying, one set or several sets joint to reach a big capacity, can maximum keep grain biological activity.
Share With:

Product Information

Working Procedure

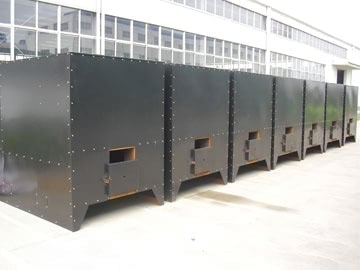

Put grain into grain dryer in batch then circulate orderly by the interaction of electric parts and structural parts. The hot air from the husk burners gets into the Mixed-flow type structure layer to across and heat the grain under the action of two electric fans. The air flows and takes off the moisture of the grain. Then the exhaust gas is excluded out of the machine by the exhaust fan. When the moisture reach to the set value, the dryer stops working.

    Features

  • Widely used for paddy, wheat, corn, rapeseed and other seeds. Lower crack rate and grind rate, higher germination rate than China Nation Standard.
  • With the newest unloading structure design, advanced mixed-flow & low temperature drying technology, and with the advanced husk burner, the drying speed and quality are superior than other grain dryer in market.

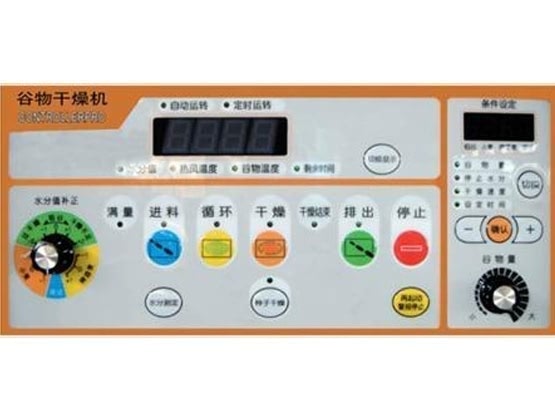

  • High automatically, fault alarm automatically, diagnosing, humanized controlling interface.
  • Branded components, patent structure design, adopt the advanced stainless steel and galvanized steel, sturdy and durable, 24 hours working time.

Technical Specifications

Model SM-40 SM-60 SM-80 SS-100 SS-120 SS-150 SL-220 SL-320
capacity (density at 0.5kg/m³) 4ton 6ton 8ton 10ton 12ton 15ton 22ton 32ton
Dryer Size Length (mm) 3360
Width (mm) 1785 1840 3700
Height (mm) 4510 5510 6510 7510 8510 9200 9390 11890
Dryer Weight 1670 1750 1830 1915 2200 2749 3850 4300
Blower Model HTF(B)-1-5 GSF-600
Type Axial-flow Centrifugal
Outlet Diameter(mm) 500 600 600x2
Air flow(m³/min) 110 180 225
Rotating Speed(rpm) 1450
Burner Model BT-6 BT-14
Type High pressure gun type
Ignition Automatic ignition Automatic fuel feeding
Oil Consumption 3-7 3-12 6-24
Applicable fuel Diesel and kerosene
Power Voltage Standard 3 phases, can be customized
Output power (kW) Conveyer Motor 1.1 1.5 2.2
Auger Motor / 1.1 0.4 0.8
Blower 2.2 3.7 5.5 11
Discharge motor 0.1 0.2
Dust remover motor 0.06
Combustor 0.25 0.5
Moisture meter 0.006
Control box 0.25
Max power consumption 4 6.5 8.1 15
Performance Loading time Paddy 20-23 26-29 35-39 44-49 40-50 40-50 45-60
Wheat 18-21 24-27 32-36 40-45 35-45 35-45 45-60
Unloading time Paddy 22-30 30-36 40-48 45-55 45-55 45-55 55-65
Wheat 20-25 24-30 32-40 40-50 35-45 33-45 45-55
Moisture Reduction (%) Paddy 0.5-1.0
Wheat 0.7-1.2
Remark Safe operation device Full-range alarm, Thermal relay, Wind switch, Pressure sensor, Flame monitor, Fuse, Hot wind temperature sensor, Grain temperature sensor, Atmospheric temperature sensor
Operation control Automatic operation, Timing operation
Standard device Moisture detector, Dust exhauster, Ladder, Grain discharging valve, Electromagnetic pump
Retail goods Portable moisture meter
