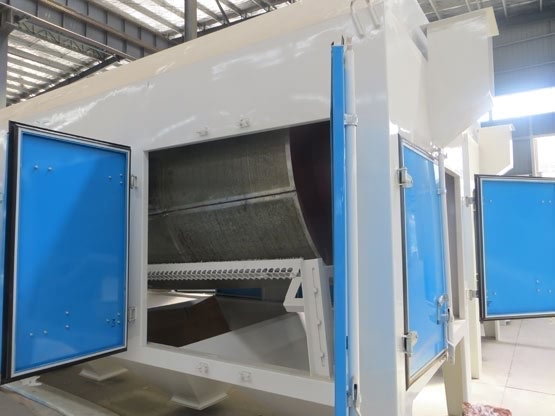

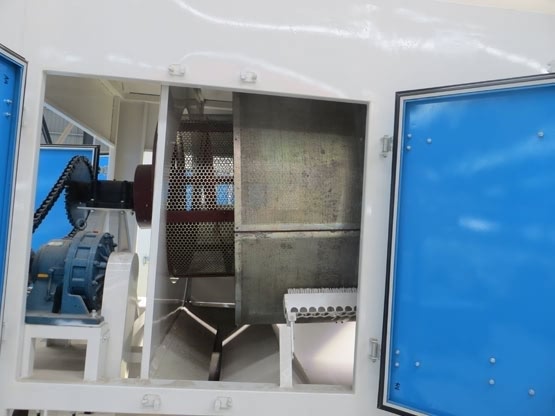

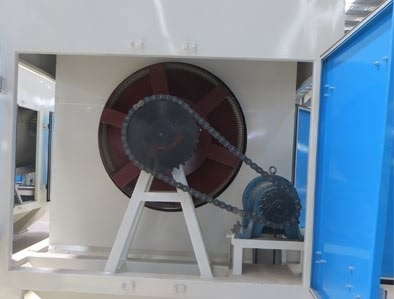

CYLINDER CLEANING SIFTER

Product Information :
Cylinder cleaning sifter is widely used for kinds of grain pre-cleaning, high efficieny.
Share With:

Product Information

Our grain pre-cleaning machines are produced with the capacities between 20-180ton/hour. Using our pre-cleaning machine, all types of grains (wheat, barley, corn, canola, soybean, etc.) are separated from all of the undesired materials such as dust, trash, hay, etc. without any other extra cleaning.

    Double-Drum Cleaning Sifter

  • Strong designed structure, high efficiency and low power consumption.
  • Sieve holes diameter varies according to product.
  • According to stored material features, drum sieve angles can be adjusted, the angular adjustment action is made through a motorized mechanism.
  • Drum rotation speed can be adjusted electronically.
  • The screen can be controlled during the operations, through the sample receiving control points.

Technical Specifications

Technical
Parameter
Sieve Screen
Dimension (cm)
Working Capacity(t/h) Vibrating Direction Angle(°) Power (kw) Motor
Speed (r/min)
Dimension
(mm)
Pre-Cleaning Cleaning Pre-Cleaning Cleaning
TQLZ40x80 40x80 3 2 25 2x0.12 190 1140 1250x870x1070
TQLZ60x100 60x100 12 4 25 2x0.25 360 960 1640x1210x1322
TQLZ100x100 100x100 20 7 25 2x0.25 420 960 1640x1550x1382
TQLZ100x150 100x150 30 11 25 2x0.37 520 960 2170x1550x1530
TQLZ100x200 100x200 40 14 25 2x0.37 540 960 2640x1550x1557
TQLZ150x150 150x150 45 16 25 2x0.75 630 960 2170x2180x1600
TQLZ150x200 150x200 60 22 25 2x0.75 650 960 2660x2180x1636
TQLZ180x200 180x200 70 26 25 2x1.1 1000 960 2700x2480x1873
TQLZ150x270 150x270 100 30 35 2x1.5 1200 960 2660x2180x1636
TQLZ180x270 180x270 120 35 35 2x1.5 1500 960 2660x2480x1636
