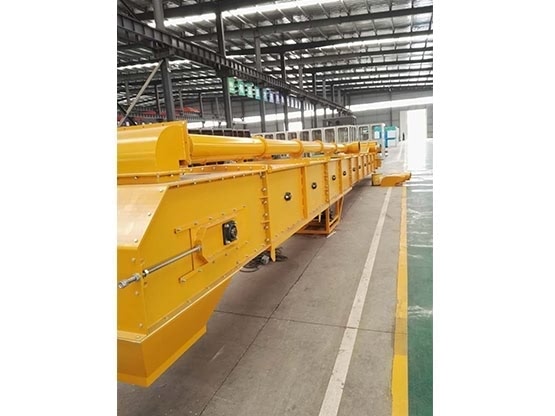

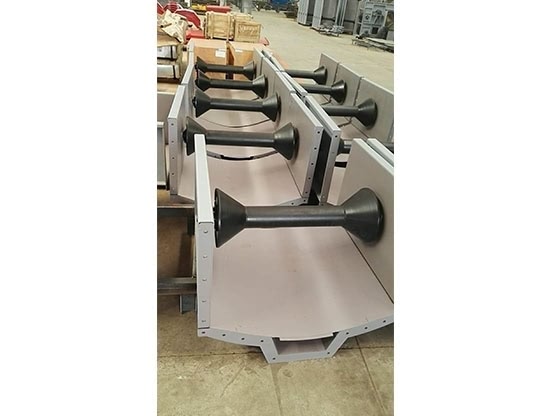

FULL SEALING BELT CONVEYOR

Production Information :
Full sealing belt conveyor is used for conveying material in silo project who has high requirement for environment protection.

Production Information

 Adopt patent single roller structure to achieve whole equipment full sealing, widely used for grain storage industry which has strict environment requirement.

l  Full sealing structure, environment friendly
l  Special residual sweeping device to avoid tail residual
l  Innovated for belt-back, reduce friction and power consumption
l  Single roller structure, drive device is external, easy for maintenance
l  Equip urgent stop, speed monitor, anti-blocking, off tracking etc. safety operation device

Technical Specifications

Model Belt Width (mm) Belt Speed (m/s) Capacity (m3/h)
1.0 1.25 1.6 2.0 2.5 3.15
TDSD50 500 65 86 111 139 173 /
TDSD65 650 127 158 203 254 317 /
TDSD80 800 198 248 317 396 496 624
TDSD100 1000 / 405 519 848 811 1022
TDSD120 1200 / 592 760 950 1188 1497
TDSD140 1400 / 825 1056 1321 1652 2081
TDSD160 1600 / / 1450 1780 2150 2700
TDSD180 1800 / / 1780 2300 2880 4600
TDSD200 2000 / / 2350 2900 3700 4800
